Fluffy Programmer

Fluffy is a SX programmer for people who have already experimented with PIC chips, and want to try out the Scenix SX family. To build it, you will need a PIC16F84 (a 16C84 will probably also work, but I don't have any to test!). Note that this implies you should already have a working PIC programmer.

IC-Prog only supports the serial interface!!

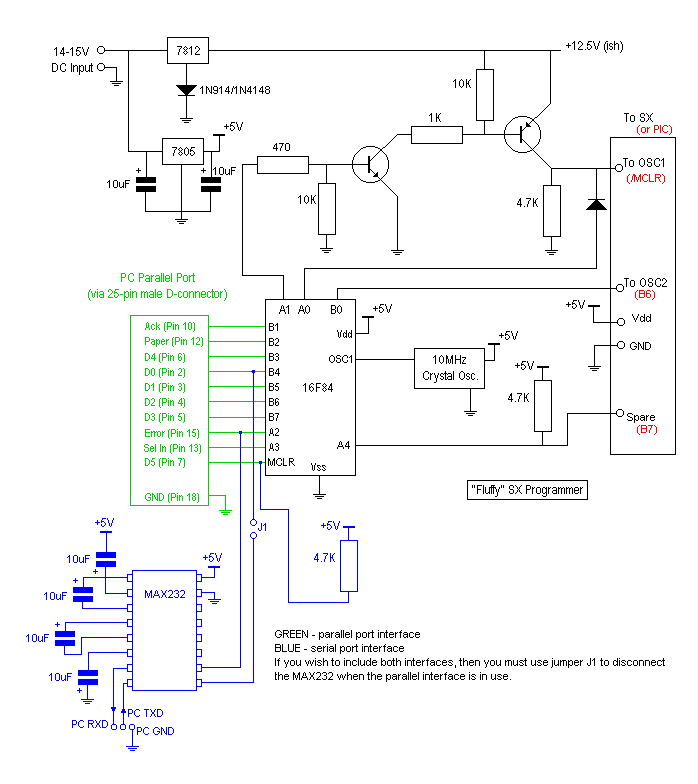

Basically A0 and A1 control the SX OSC1 voltage level - both low implies 0V, A0 high (and A1 low) implies 5V, and A1 high (and A0 low) gives 12.5Vish. If you want to implement your own power supply circuit, it shouldn't be too hard.

sxprog.hex This is the hex file to program the PIC with.

For additional information contact "The Fluffy Programmer" page
